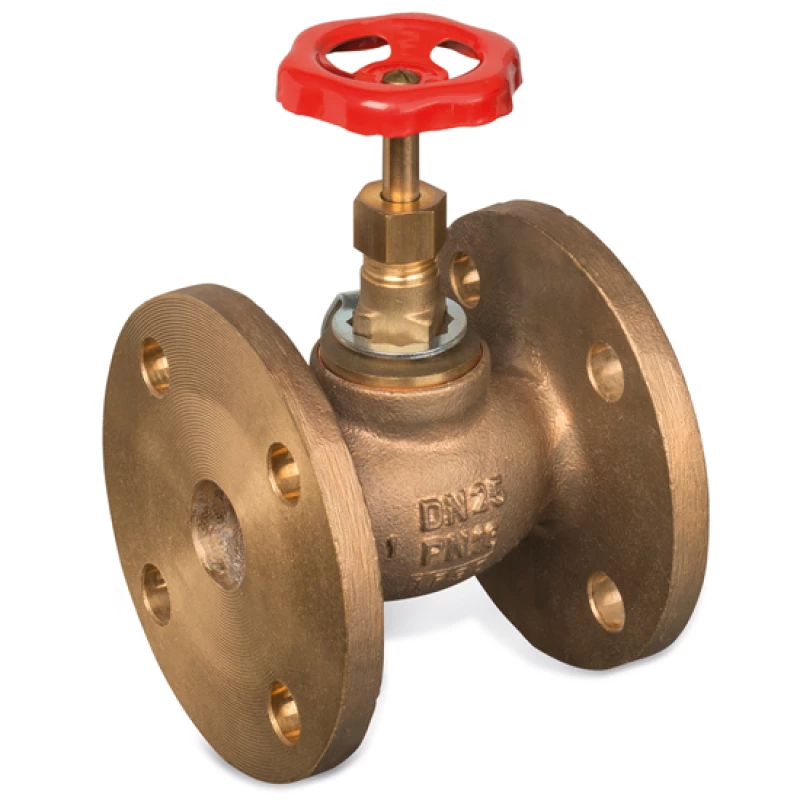

Bronze gate valve with PTFE valve ring | KP-515

Suitable for: steam, water, oil, gases and air

Type	KP-515
Material	Bronze CuSn5Zn5Pb5-C
Pressure class	PN16
Top part	Bronze Cu2n40Pb2
Handwheel	Aluminum
Seat	Bronze CuSn5Zn5Pb5-C
Disc	Bronze with interchangeable PTFE ring
Spindle	Bronze
Gland packing	PTFE > 3/4"-> AF/15/MA

Temperature	7 bar to +170°C
	16 bar up to +100°C

Contact

For more information on our valves, please contact us at:

appendages@klinger.nl

Specifications
