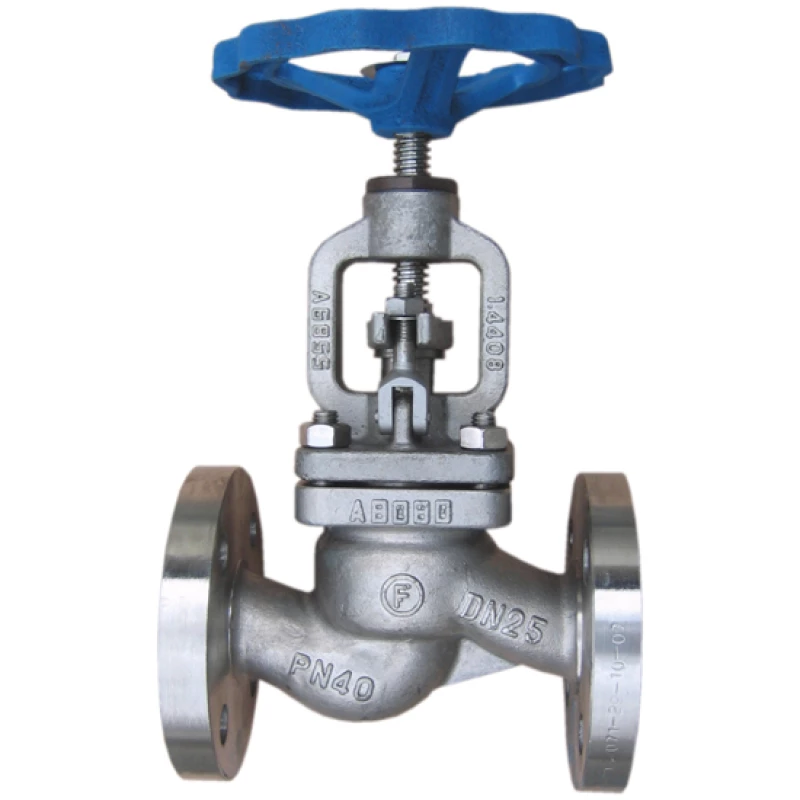

Stainless steel Globe valve | KP
Flange connection PN 40
Suitable for: steam, water, oil, gases, air, chemicals and acids
Urgency or questions about availability?
Options
- as a control valve with parabolic valve
- With adjustable flap and seat
Specifications
| Type | KP-702 |
| Material | Stainless steel GX5CrNiMo-19-11-2 |
| Pressure class | PN 40 |
| Top part | Stainless steel GX5CrNiMo-19-11-2 |
| Handwheel | Cast Iron GJL-200 |
| Threaded canister | Nodular cast iron GJS-400-15 |
| Seat | Stainless steel GX5CrNiMo-19-11-2 |
| Disc | Stainless steel X6CrNiMoTi-17-12-2 |
| Spindle | Stainless steel X6CrNiMoTi-17-12-2 |
| Cover gasket | Graphite |
| Gland packing | Graphite |
|
|
|

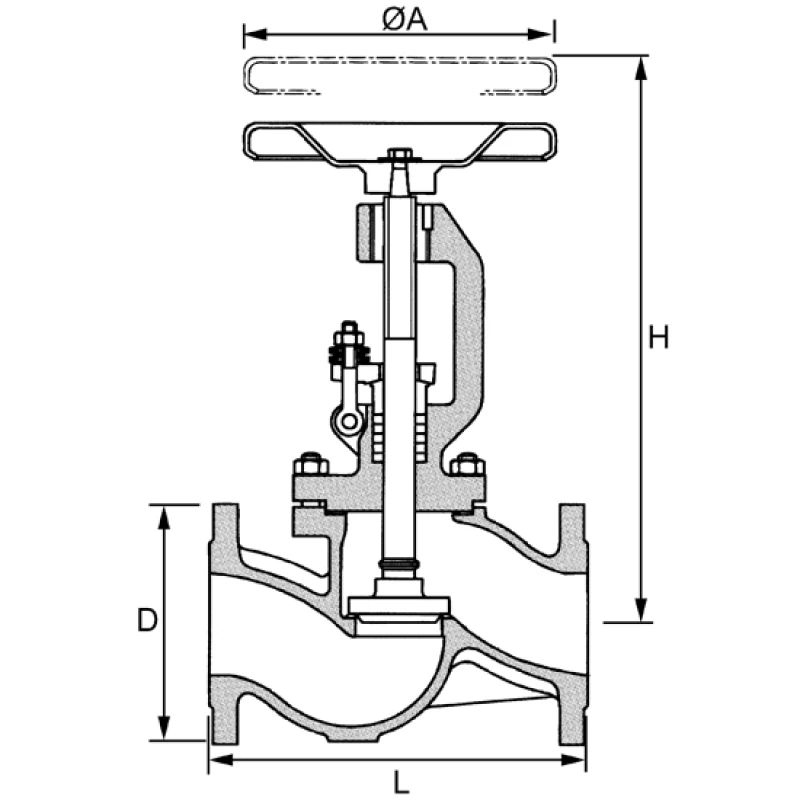

| Face to face | EN558-1 series 1 |
| Connection | EN1092-1 |
|
|
|
| Temperature | -60°C to +300°C |
Contact
For more information on our valves, please contact us at:
