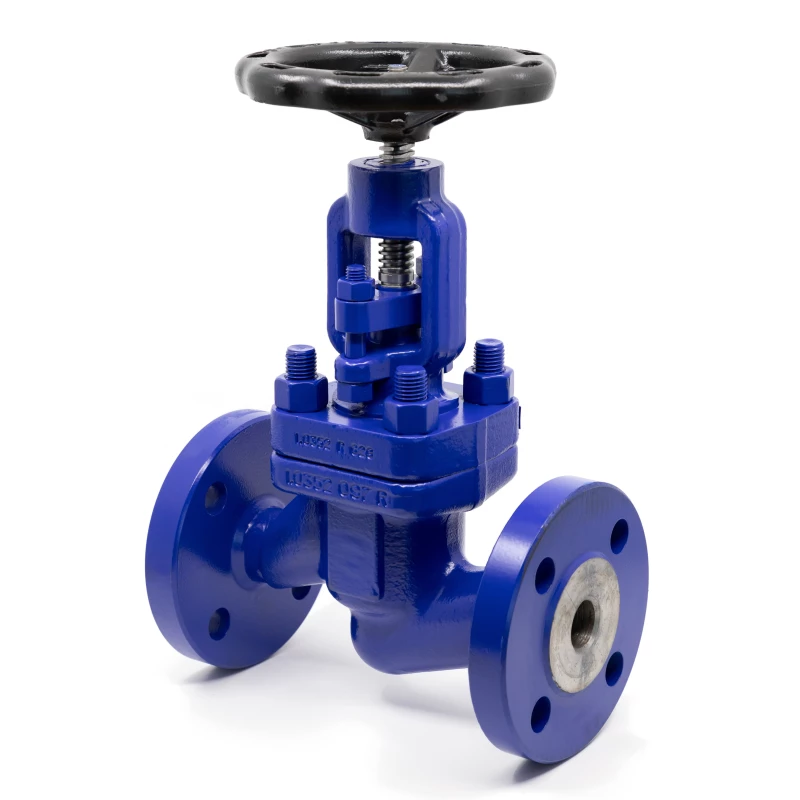

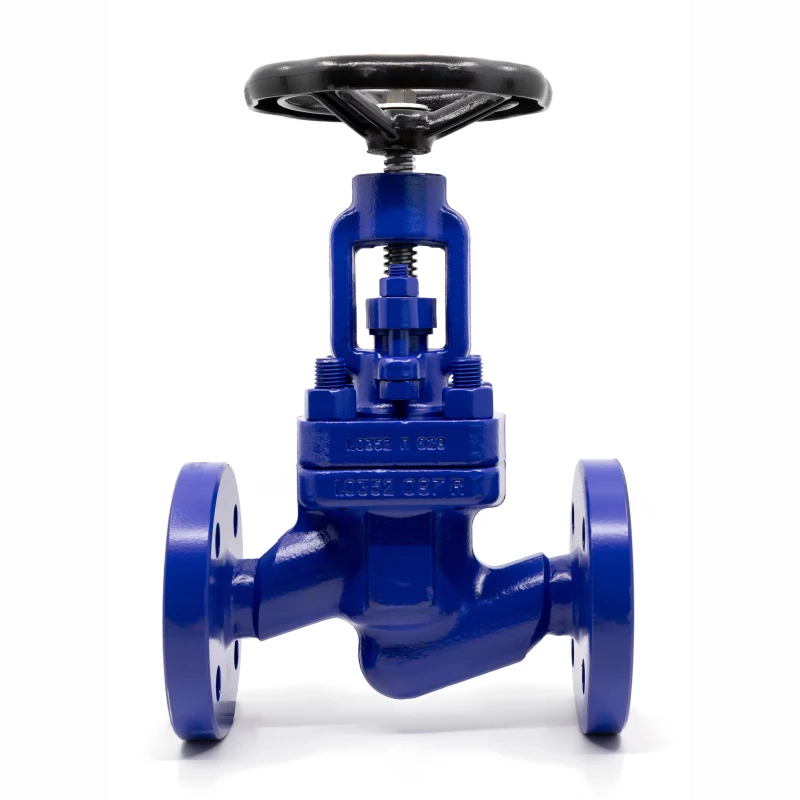

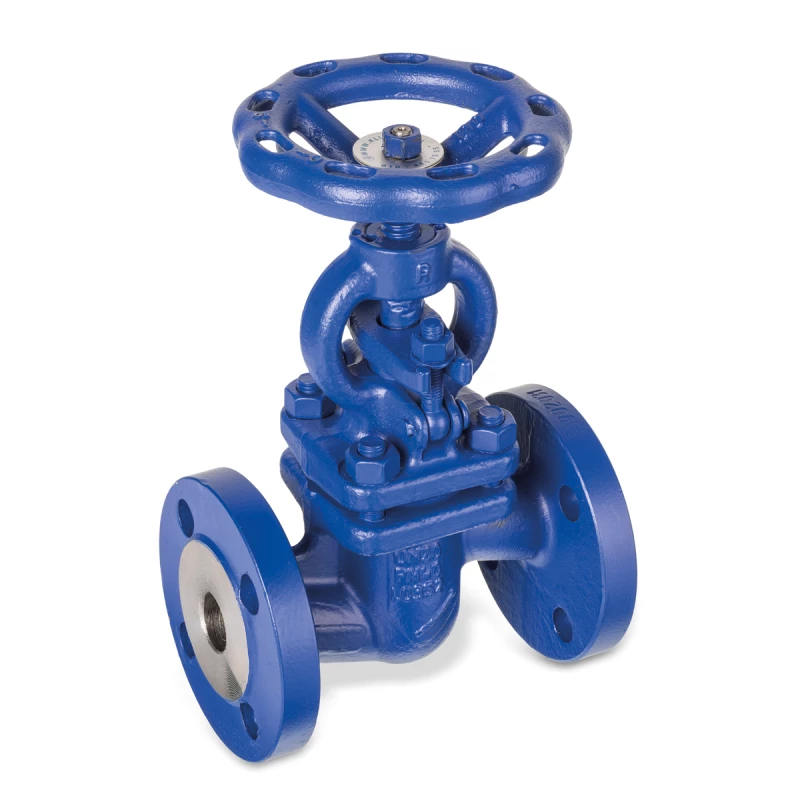

Steel gate valve | KP-771
Flange connection PN 40, PN 100 and PN 160
Suitable for: cold and hot water, oil, steam, gas and air
Options
- with parabolic valve
- for > DN125 with pressure relief valve
- DN250 and larger on request
- Housing material 13CrMo4-5 + stellite seat
Specifications
| Type | KP-771 |
| Material | Cast steel GP240GH+N |
| Pressure class | PN 40, PN 100 and PN 160 |
| Top part | Cast Steel |
| Handwheel | Cast Iron GP240GH+N* |
| Seat | Stainless steel X20Cr13 |
| Disc | Stainless steel X20Cr13 |
| Spindle | Stainless steel X20Cr13 |
| Cover gasket | Graphite |
| Gland packing | Graphite |
|
|
|
| Face to face | EN558-1 series 1 |
| Connection | EN1092-1 |
|
|
|
| Temperature | -10°C to +400°C for pressure class PN 40 |
| -10°C to +450°C for pressure class PN 100 and PN 160 | |
|
|
|
|
*PN 100 and PN 160 with welded flanges.
|
|
