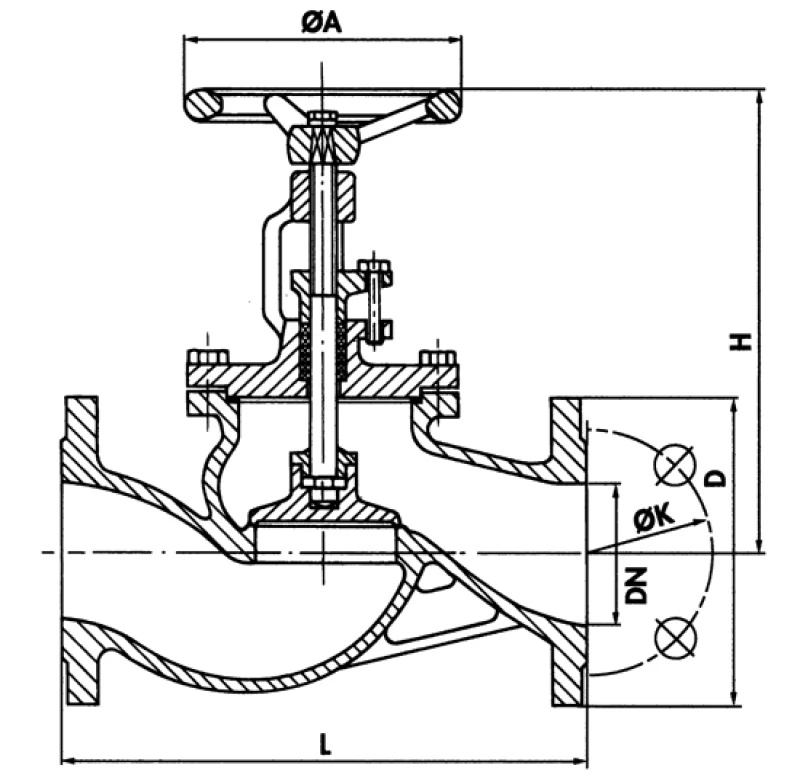

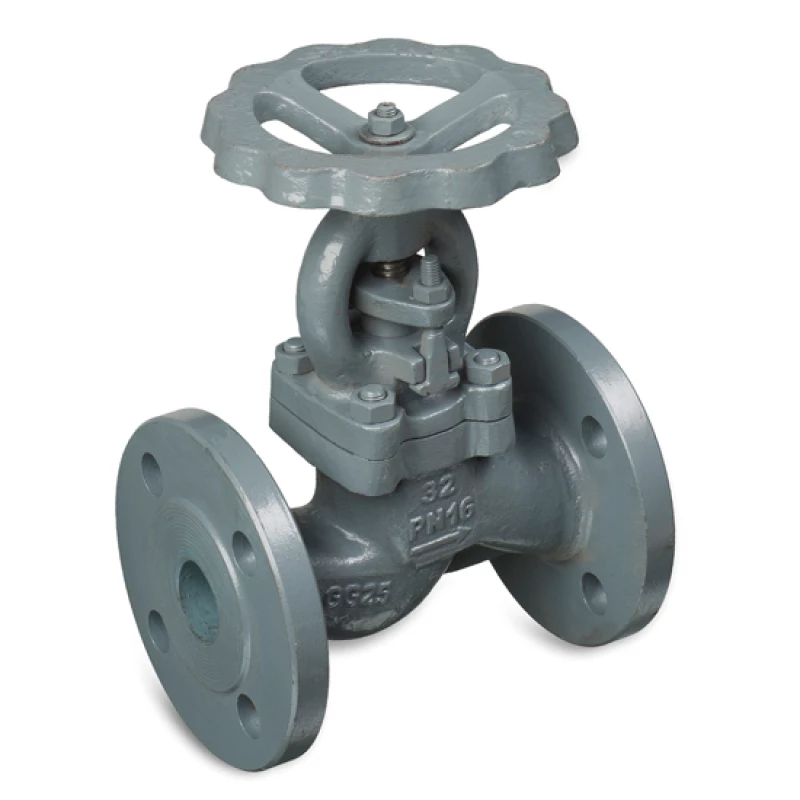

Cast iron Globe valve | KP
Flange connection PN 16
Suitable for: cold and hot water, oil, steam, gas and air
Urgency or questions about availability?
Also available
- Type KP-821 with bellows seal
Specifications
| Type | KP-721 |
| Material | Cast Iron EN-GJL-250 |
| Pressure class | PN 16 |
| Top part | Cast Iron |
| Handwheel | Cast Iron |
| Seat | STAINLESS STEEL |
| Disc | STAINLESS STEEL |
| Spindle | STAINLESS STEEL |
| Cover gasket | Graphite |
| Gland packing | Graphite |
|
|
|
| Face to face | EN 558-1 series 1 |
| Connection | EN 1092-2 |
|
|
|
| Temperature | 13 bar up to +300°C |
| 16 bar to +120°C | |
