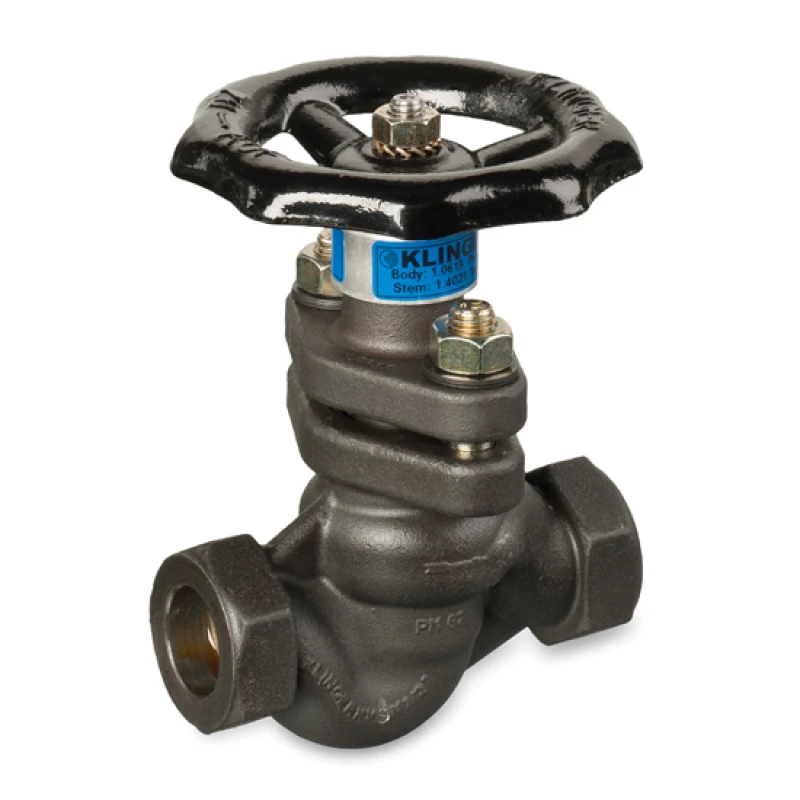

Steel KLINGER KVSn Piston valve | KP-175
Welding connection Socket-Weld PN 63
Suitable for: steam, condensate, water, oil, air and gas
- Fire-safe tested according to Standard API-6FA.
- By default, the valve already has control characteristics.
- Resistant to water hammer.
- Universally applicable (steam, thermal oil, water, gas) one type of rings for all media except highly oxidizing acids.
- Simple and inexpensive revision, can be repeated many times.
- Can be overhauled in the pipe.
- High Kv value.
Urgency or questions about availability?
Specifications
| Type | KP-175 |
| Material | Cast steel GP240GH |
| Pressure class | PN 63 |
| Top part | Forged steel |
| Handwheel | Cast Iron EN-GJL-200 |
| Spindle | Stainless steel X20Cr13 |
| piston | Stainless steel X14CrMoS17 |
| Seal | KLINGER KX module |
|
|
|
| Connection | ANSI B 16.11 |
|
|
|
| Temperature | -10°C to +400°C |
