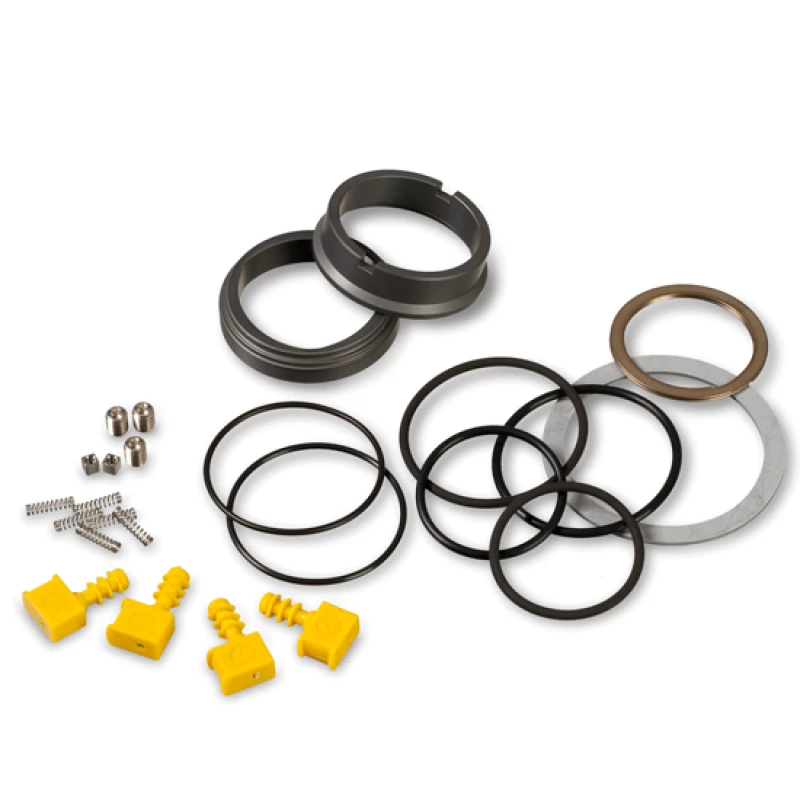

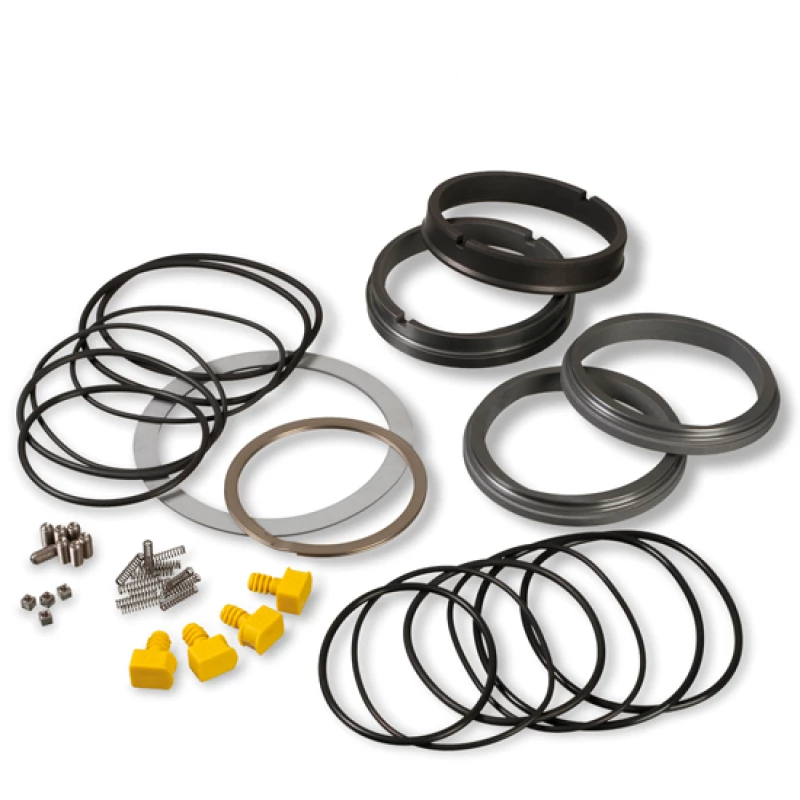

Cartridge Latty seal | Repair kits tbv B24610 and B24810 (DB) series
Repair kits for Latty Cartridge seals type B 24 in the different versions and materials
Suitable for: all types of Lattyseal B 24 Cartridge
- The kits include all wear parts, viz:
- All sliding surfaces.
- Hastelloy springs.
- O-rings FPM and EPDM.
- Lid Packing.
- Polyamide adjustment blocks.
- All(socket) bolts stainless steel.
- Clip ring stainless steel.
Urgency or questions about availability?
Specifications
| Type | Repair kits for B24610 and B24810 (DB) series |
| Material | |
| Slip ring rotating | Silicon carbide (U3 or U6) |
| Slip ring stationary | Silicon carbide (U3)or Carbon (B1) |
| O-rings | FPM (V) or EPDM (E) |
| Feathers | Hastelloy (C4) |
| Gasket | KLINGERSil C-8200 |
Contact
For more information about our Latty Cartridge Seals , please feel free to contact us at:
