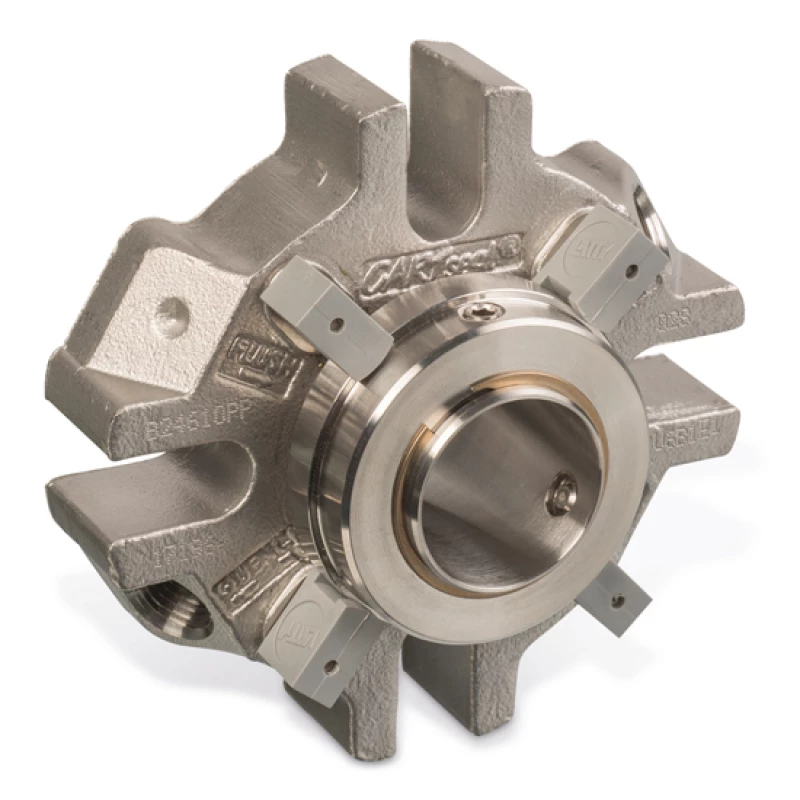

Cartridge Latty seal - B 24610 PPQ U6U6V4

Cartridge Latty seal | B 24610 PPQ U6U6V4

Cartridge Latty seal | B 24610 PPQ U6U6V4
Cartridge Latty seal | B 24610 PPQ U6U6V4
gallery slider left
gallery slider right

Running surfaces silicon carbide/carbon, direction of rotation independent

Suitable for: hot aggressive, crystallizing and abrasive media

  • This cartridge seal is balanced and stationary constructed, direction of rotation independent and very universal in size to fit many pump brands.
  • Installation is very easy.
  • After use, all wearing parts are easy to replace.
  • Measurement for installation not necessary.
  • During assembly, it is fully enclosed and all vulnerable parts are protected.
  • Unique patented slip-ring take-up system.
Specifications
Cartridge Latty seal | B 24610 PPQ U6U6V4
Cartridge Latty seal | B 24610 PPQ U6U6V4
Previous series Next Series

To be specified when ordering

  • O-rings: FPM (V), EPDM (E)

Specifications

Type B 24610 PPQ U6U6V4
Material AISI 316L
Slip ring rotating Silicon carbide (U6 = DIN Q1)
Slip ring stationary Silicon carbide (U6 = DIN Q1)
O-rings FPM (V), option EPDM (E) or Kalrez (K)
Feathers Hastelloy (C4)
Gasket Klinger SIL C-8200
Max. pressure 25 bar
Max. temperature 220ºC
Max. speed 20 m/s
Approved/tested by ATEX II 2 GD ck IIA-IIB T6..T3
(application in explosive environments)
FDA / EN1935 - 2004 / ACS
(food application)
Contact

For more information about our Latty Cartridge Seals , please feel free to contact us at:
