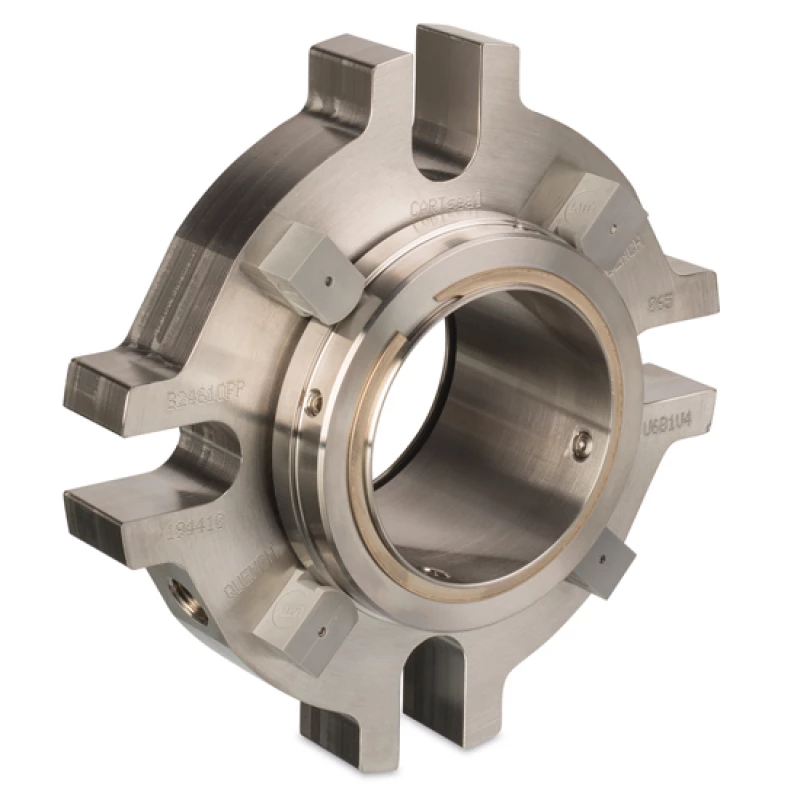

Cartridge Latty seal | B 24610 PPQ U6B1V4

Suitable for: hot aggressive, crystallizing, slightly abrasive media

This cartridge seal is balanced and stationary constructed, direction of rotation independent and very universal in size to fit many pump brands.
Installation is very easy.
After use, all wearing parts are easy to replace.
Measurement for installation not necessary.
During assembly, it is fully enclosed and all vulnerable parts are protected.
Unique patented slip-ring take-up system.

Urgency or questions about availability?

Specifications

Type	B 24610 PPQ U6B1V4
Material	AISI 316L
Slip ring rotating	Silicon carbide (U6 = DIN Q1)
Slip ring stationary	Cabbage (B1)
O-rings	FPM (V), option EPDM (E) or Kalrez (K)
Feathers	Hastelloy (C4)
Gasket	Klinger SIL C-8200

Max. pressure	25 bar
Max. temperature	220ºC
Max. speed	20 m/s

Approved/tested by	ATEX II 2 GD ck IIA-IIB T6..T3
	(application in explosive environments)
	FDA / EN1935 - 2004 / ACS
	(food application)
