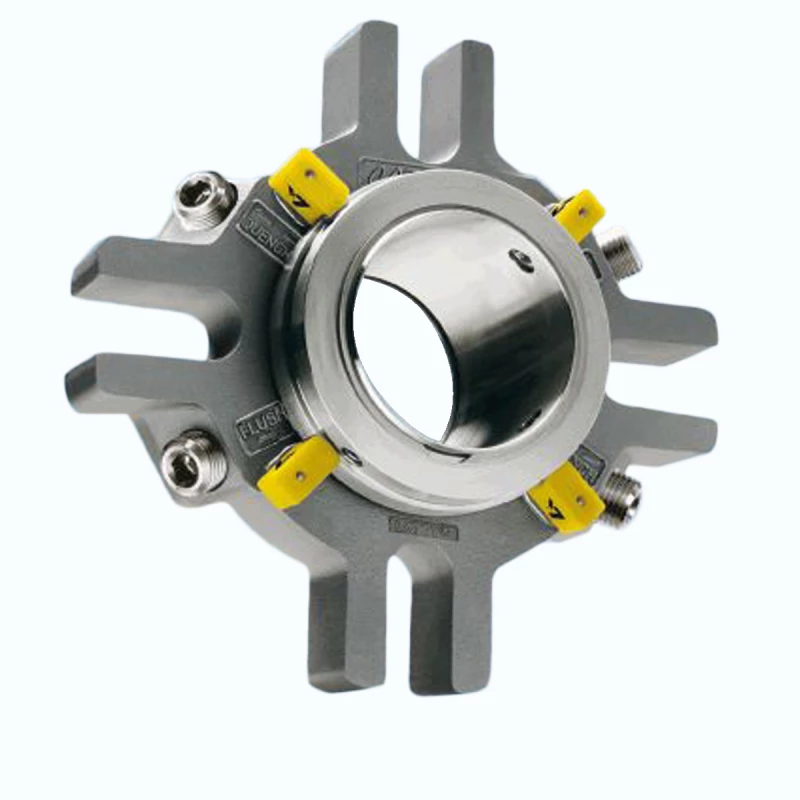

Balanced Latty seal (b236) | B 23612 U6U6V
Running surfaces silicon carbide/silicon carbide, with flush connection
Suitable for: hot aggressive, highly abrasive media, model with circulation connection
- This cartridge seal is balanced and very ruggedly constructed, rotational direction independent and very universal in size to fit many pump brands.
- Installation is very easy.
- After use, all wearing parts are easy to replace.
- Measurement for installation not necessary.
- During assembly, it is fully enclosed and all vulnerable parts are protected.
- Unique slip-ring take-up system.
Urgency or questions about availability?
To be specified when ordering
- O-rings: FPM (V), EPDM (E)
Specifications
| Type | B 23612 U6U6V |
| Material | AISI 316L (Seal Duplex 1.4462) |
| Slip ring rotating | Silicon carbide (U6 = DIN Q1) |
| Slip ring stationary | Silicon carbide (U6 = DIN Q1) |
| O-rings | FPM (V), option EPDM (E) or Kalrez (K) |
| Gasket | KLINGERSil C-8200 |
|
|
|
| Max. pressure | 25 bar |
| Max. temperature | 160ºC |
| Max. speed | 20 m/s |
|
|
|
