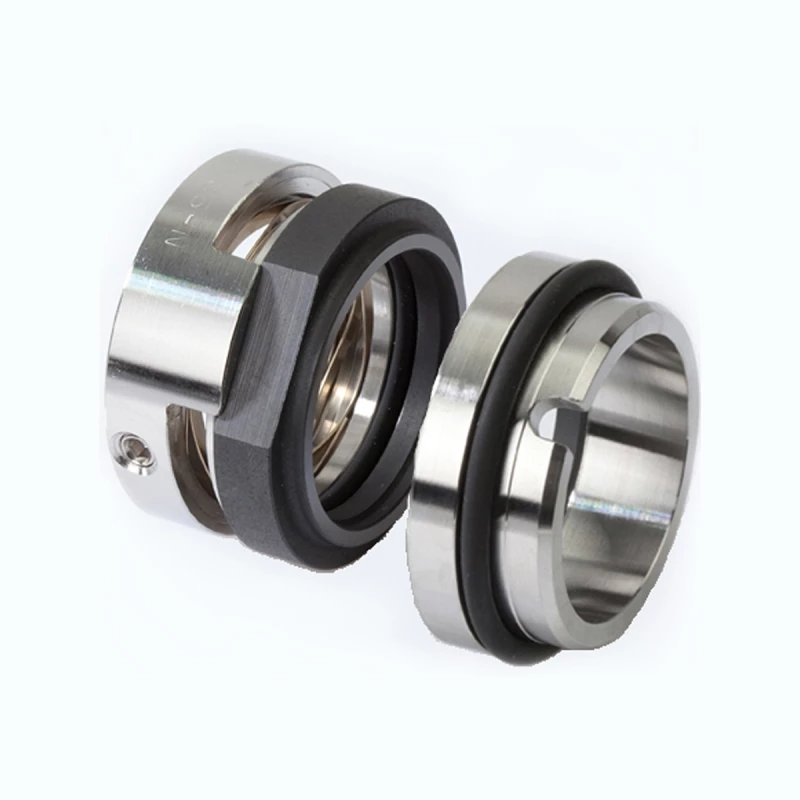

Chemistry standard Latty seal (u6) | U 6812 U6U6V
Running surfaces silicon carbide/silicon carbide, direction of rotation independent
Suitable for: both abrasive and aggressive media
- This type of seal has a short installation length and is: single, direction of rotation independent, with loose slide rings and equipped with sine spring.
Urgency or questions about availability?
Overhaul in our own seal overhaul workshop possible.
Options
- O-rings: PTFE sheathed (M5), Kalrez (K)
To be specified when ordering
- O-rings: FPM (V) or EPDM (E)
Also available
- In balanced model (B 6810)
Specifications
| Type | U 6812 U6U6V |
| Material | AISI 316L |
| Rotary part | Silicon carbide (U6 = DIN Q1)v |
| Idle part | Silicon carbide (U6 = DIN Q1) |
| O-rings | FPM (V), option EPDM (E) |
|
|
|
| Max. pressure | 10 bar |
| Max. temperature | 220ºC |
| Max. speed | 15 m/s |
| P.V. factor | 50 |
|
|
|

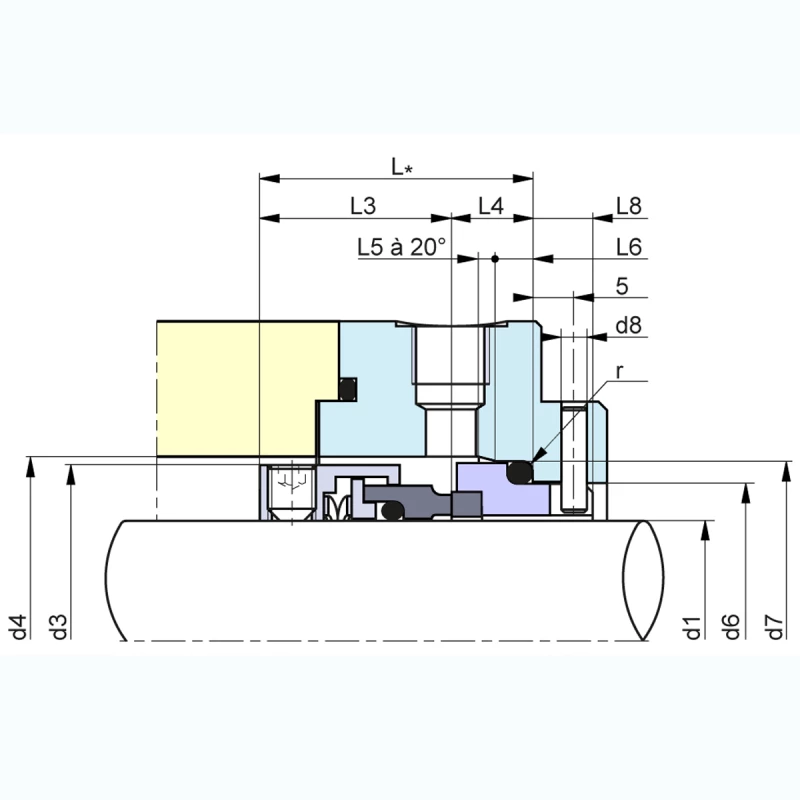

| Dimensions | according to DIN 24960 |
Contact
For more information about our mechanical seals (mechanical seals), please contact us at:
