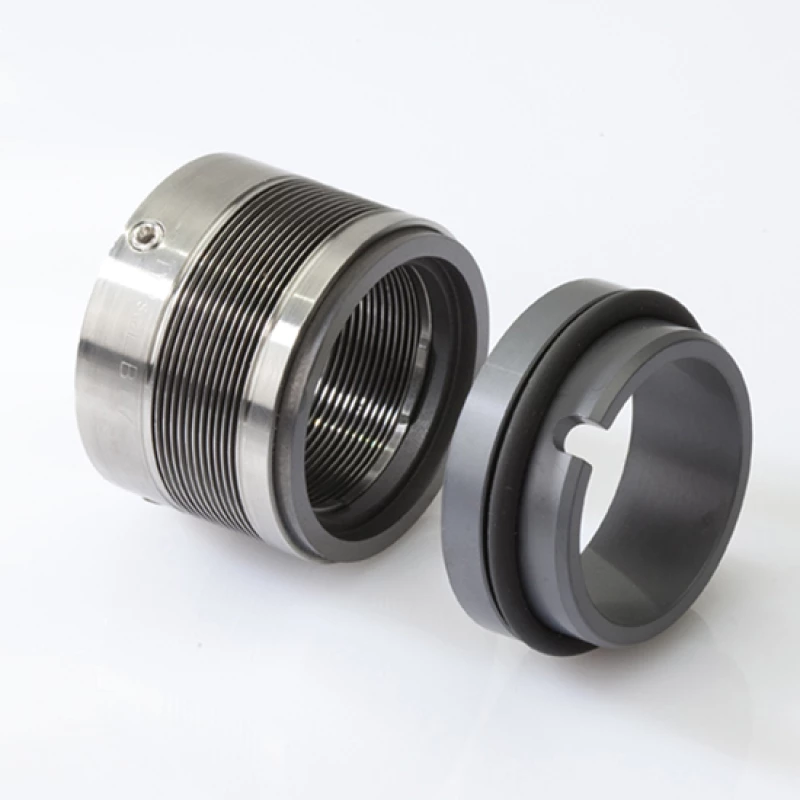

Balanced Latty bellows seal (b171) | B 17110 AU6V
Running surfaces carbon/silicon carbide, direction of rotation independent
Suitable for: aggressive media at higher temperatures, e.g. solvents and feed water pumps
- This seal is balanced and direction of rotation independent due to the bellows configuration.
- This seal has no quasi dynamic O-ring seal and is stationary to fit.
Overhaul in our own seal overhaul workshop possible.
Options
- O-rings: PTFE sheathed (M5), Kalrez (K)
To be specified when ordering
- O-rings: FPM (V) or EPDM (E)
Specifications
| Type | B 17110 AU6V |
| Material | AISI 316L |
| Rotary part | Cabbage (A) |
| Idle part | Silicon carbide (U6 = DIN Q1) |
| O-rings | FPM (V), option EPDM (E) |
|
|
|
| Max. pressure | 20 bar |
| Max. temperature | 200ºC |
| Max. speed | 25 m/s |
|
|
|

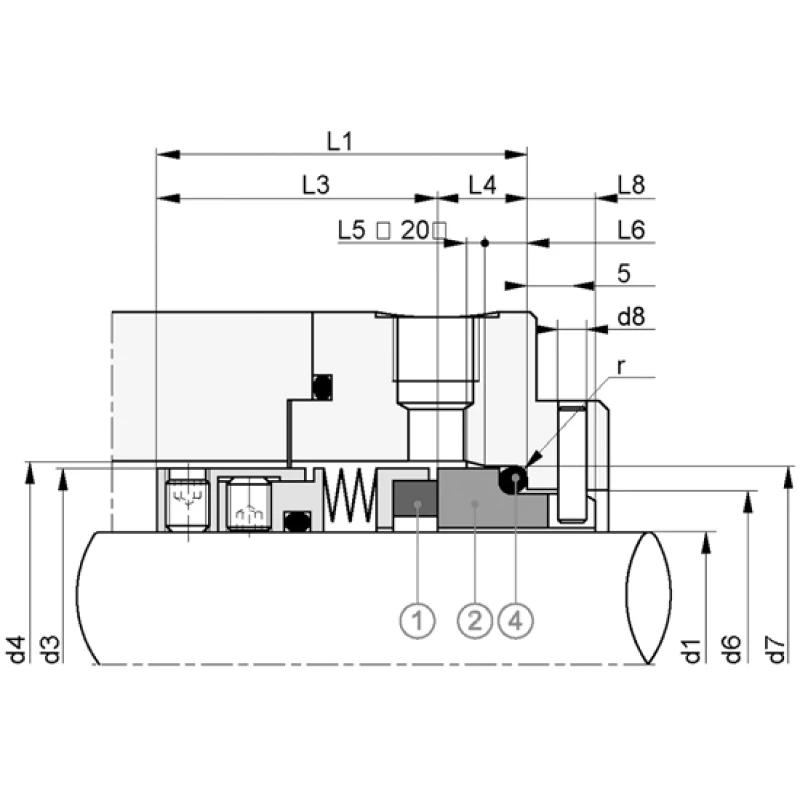

| Dimensions | according to DIN 24960 |
