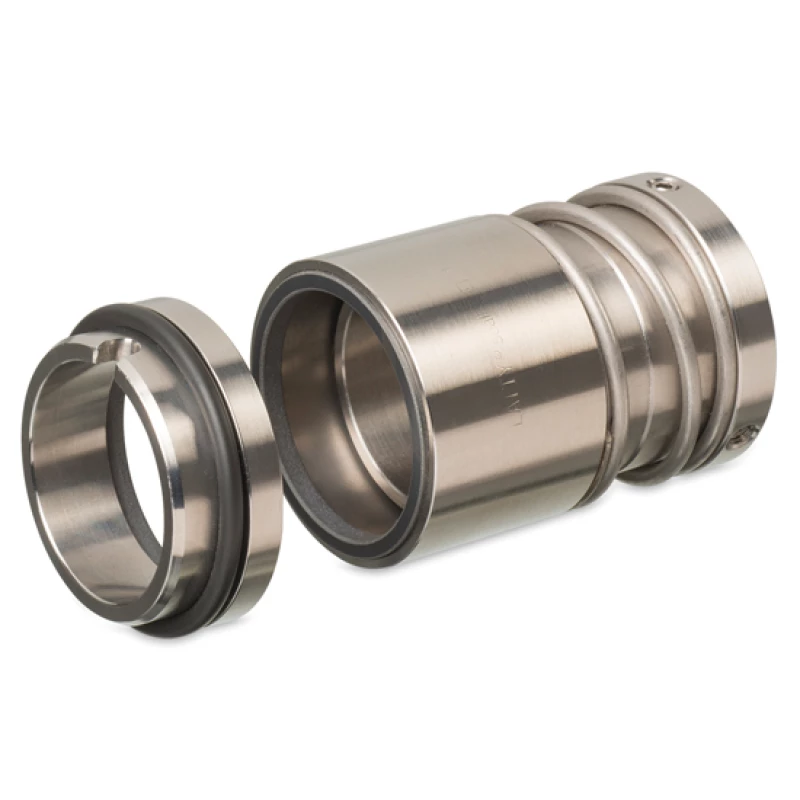

Balanced Latty seal (b18) | B 18212 U6U6V
Running surfaces Silicon carbide/Silicon carbide, direction of rotation independent
Suitable for: pumps with abrasive media, such as paper dust, sewer slurries and crystallizing media, such as caustic soda and potash
- This type of seal is intended for mechanically harsh conditions in e.g. the steel, sugar and paper industries.
- It is balanced to fit a DIN seal chamber and has an oversized robust spring.
Urgency or questions about availability?
Overhaul in our own seal overhaul workshop possible.
Also available
- O-rings: PTFE sheathed (M5), Kalrez (K),other and also inch sizes, sliding surfaces of the mechanically stronger Tungsten Carbide (U2).
To be specified when ordering
- O-rings: FPM (V) or EPDM (E)
Specifications
| Type | B 18212 U6U6V |
| Material | AISI 316L |
| Rotary part | Silicon carbide (U6 = DIN Q1) |
| Idle part | Silicon carbide (U6 = DIN Q1) |
| O-rings | FPM (V), option EPDM (E) |
|
|
|
| Max. pressure | 25 bar |
| Max. temperature | 180ºC |
| Max. speed | 20 m/s |
|
|
|

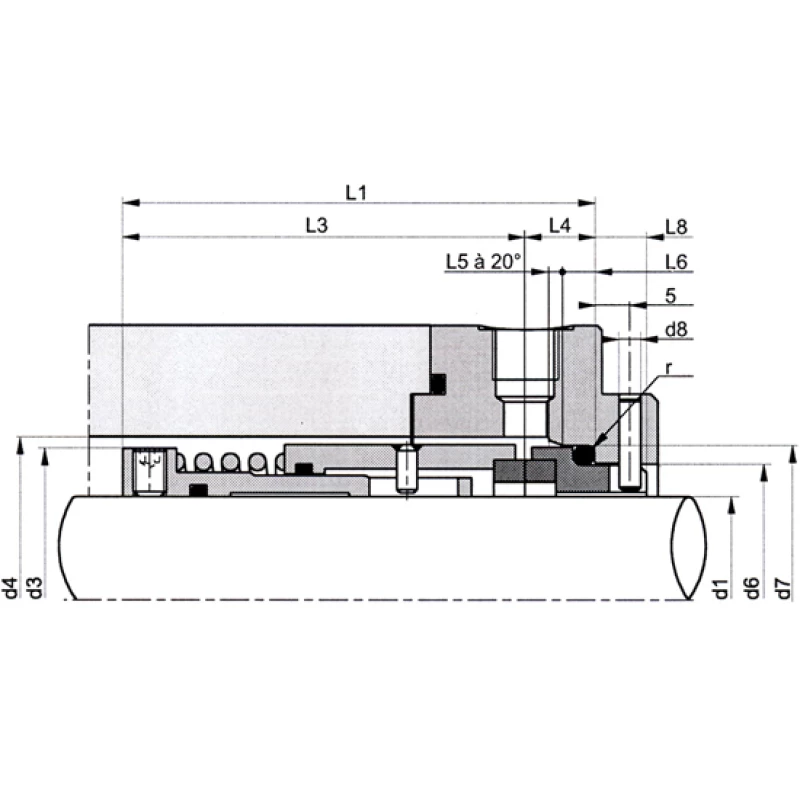

| Dimensions | Diameters according to DIN 24960 |
