Balanced Latty seal (b107) - B 10712 REV U2U2V

Balanced Latty seal (b107) | B 10712 REV U2U2V

product image
product image

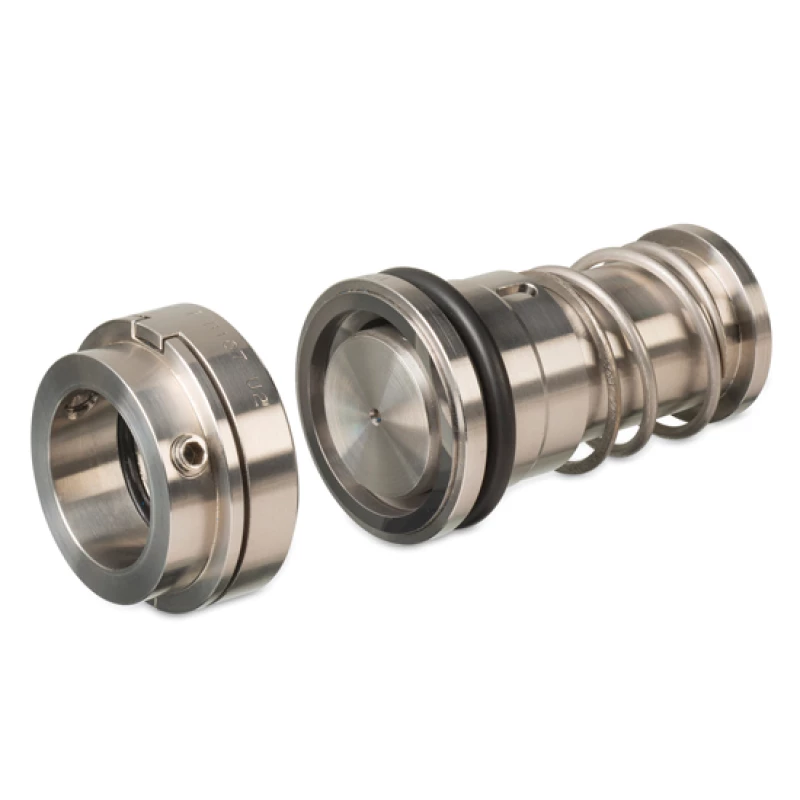

Balanced Latty seal (b107) | B 10712 REV U2U2V
Balanced Latty seal (b107) | B 10712 REV U2U2V
gallery slider left
gallery slider right

Running surfaces Tungsten carbide (nickel-bonded), direction of rotation independent stationary seal

Suitable for: pumps with abrasive media, such as paper dust, sewer slurries and crystallizing media, such as caustic soda and potash

  • This type of seal is: rotation direction independent.
  • Of medium shielded coarse spring.
  • Highly robust, withstanding harsh mechanical conditions.
  • Spring is stationary.
Specifications
Balanced Latty seal (b107) | B 10712 REV U2U2V
Balanced Latty seal (b107) | B 10712 REV U2U2V
Previous series Next Series

Urgency or questions about availability?

Mechanical Shaft Seals
088 528 20 82
or
Overhaul in our own seal overhaul workshop possible.

Also available

  • O-rings: PTFE sheathed (M5), Kalrez (K), inch dimensions, other versions in terms of mounting rotating part.

To be specified when ordering

  • O-rings: FPM (V) or EPDM (E)

Specifications

Type B 10712 REV U2U2V
Material AISI 316L
Rotary part Tungsten carbide (U2)
Idle part Tungsten carbide (U2)
O-rings FPM (V), option EPDM (E)
Max. pressure 10 bar
Max. temperature 180ºC
Max. speed 10 m/s
Dimensions depending on model
