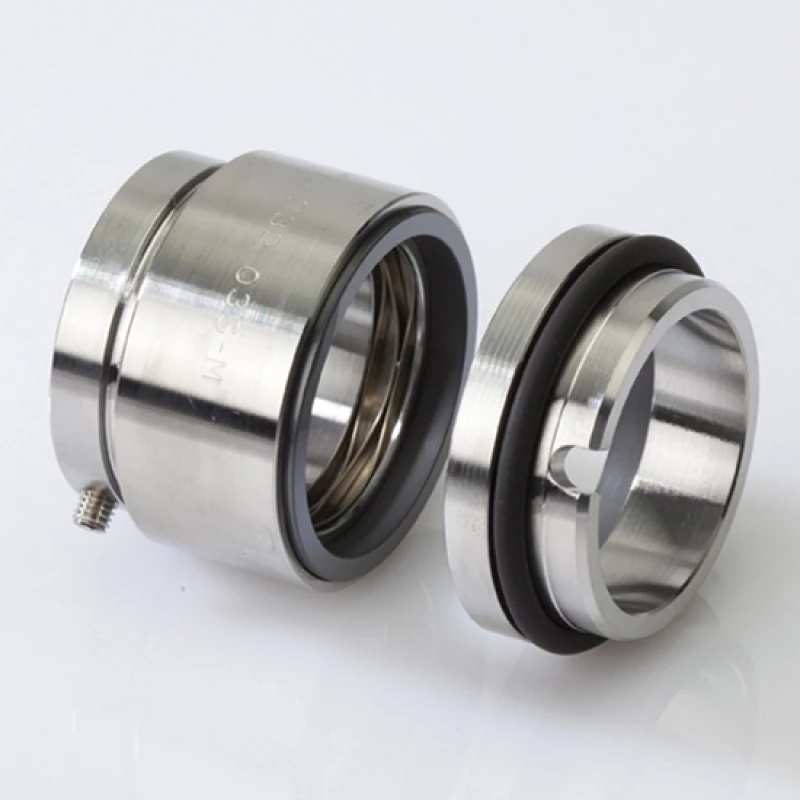

Balanced Latty seal (b23) | B 23112 BU6V
Running surfaces carbon/silicon carbide, direction of rotation independent
Suitable for: pumps with aggressive, slightly abrasive media such as oils, contaminated water, slurries
- This type of seal is: direction of rotation independent, hydraulically balanced by its own shaft sleeve and the spring is separated from the medium.
- Unique octagonal take-home system with no pins, no welding.
Urgency or questions about availability?
Overhaul in our own seal overhaul workshop possible.
Options
- O-rings: PTFE sheathed (M5), Kalrez (K), inch dimensions
To be specified when ordering
- O-rings: FPM (V) or EPDM (E)
Specifications
| Type | B 23112 BU6V |
| Material | Duplex 1.4462 |
| Rotary part | Cabbage (B) |
| Idle part | Silicon carbide (U6 = DIN Q1) |
| O-rings | FPM (V), option EPDM (E) |
|
|
|
| Max. pressure | 25 bar |
| Max. temperature | 160ºC |
| Max. speed | 20 m/s |
| P.V. factor | 500 |
|
|
|

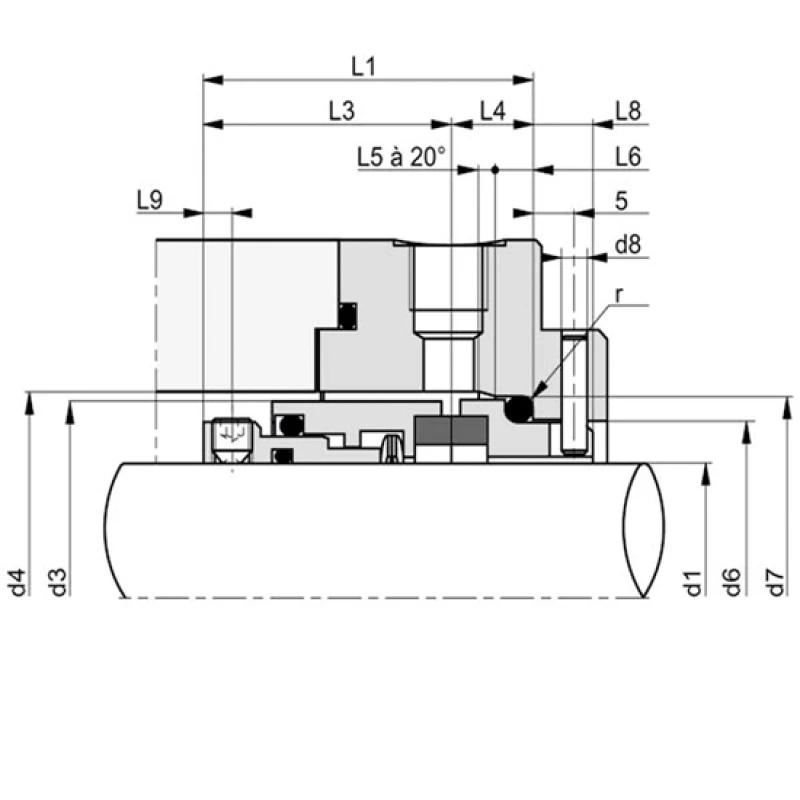

| Dimensions | according to DIN 24960 |
Contact
For more information about our mechanical seals (mechanical seals), please contact us at:
