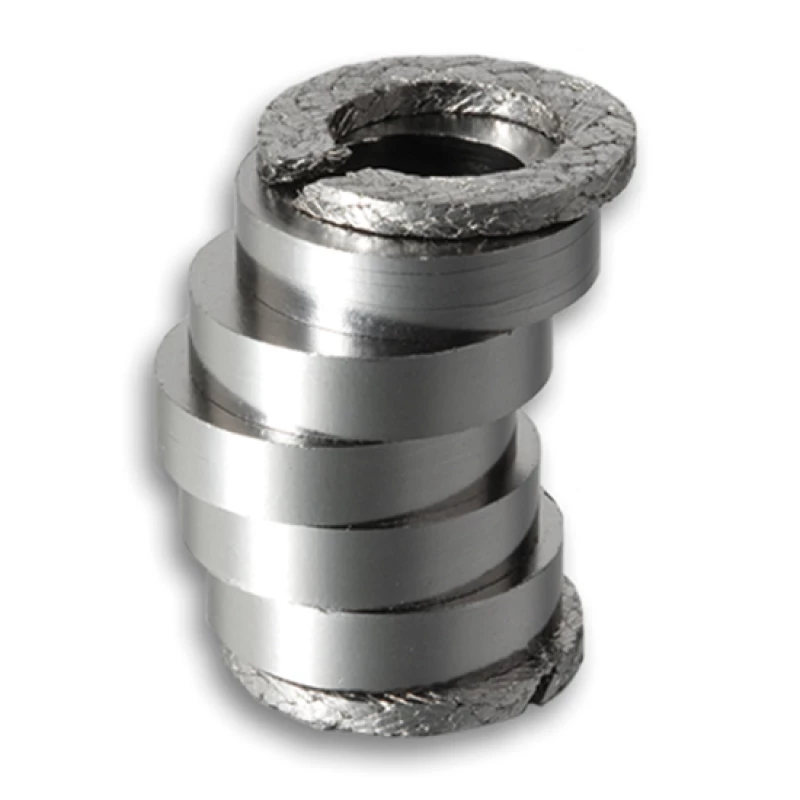

Expanded graphite tape | Lattygraf E2/E2adH
Graphite tape, expanded
Suitable for: steam, hot water, hydrocarbons
- Lattygraf E2 is 99% pure expanded graphite tape, from which rings can be pressed in many sizes and densities, depending on the specific application.
Urgency or questions about availability?
Also available
- Ready-made pre-pressed rings from our own press shop
- E___: nuclear 99.85% pure quality
- E1__: with Zinc inhibitor
- EMB_: with barium inhibitor
- EF__: with PTFE impregnation
- EFNG: with corrosion inhibitor (TA LUFT quality)
Specifications
| Type | Lattygraph E2/E2adH |
| Material | Graphite expanded |
|
|
|
| *Max. temperature | 450°C in(inert atm. >2000°C) |
| *Max. pressure | 300 bar |
| _Purity | 99% |
| _Free chlorides | < 50 ppm |
| _Density tape | 0.70/cm³ |
| _Density ring | 1.2 to 1.8 g/cm³ |
| _Ph range | 0-14 |
|
|
|
|
* Not at the same time
|
|
Contact
For more information about our gland packings , please contact:
