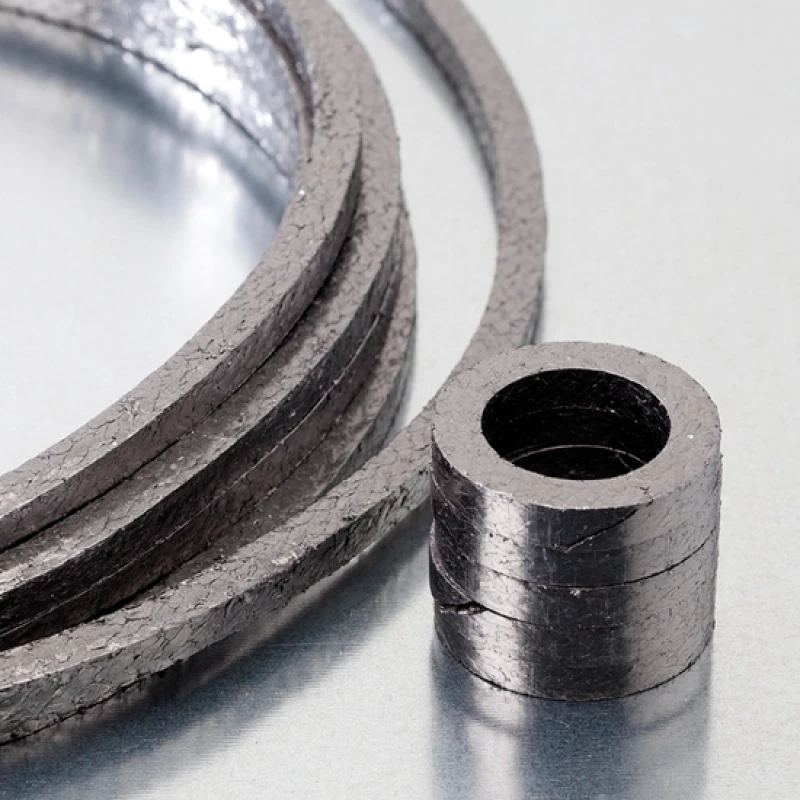

Expanded graphite gasket | Lattygraf 6960

Suitable for: steam, hot water, thermal oils, many chemicals

Lattygraf 6960 based on expanded graphite has very good sealing properties.
This gasket is suitable for both appendages (static application) and pumps (dynamic application).

Specifications

Type	Latty grave 6960
Material	Braided expanded graphite wires, impregnated with a special graphite mix, and v.z.v. a corrosion inhibitor

*Max. temperature	450°C
*Max. pressure	300 bar
*Max. speed	12 m/s
_Ph range	0 - 14

* Not at the same time
