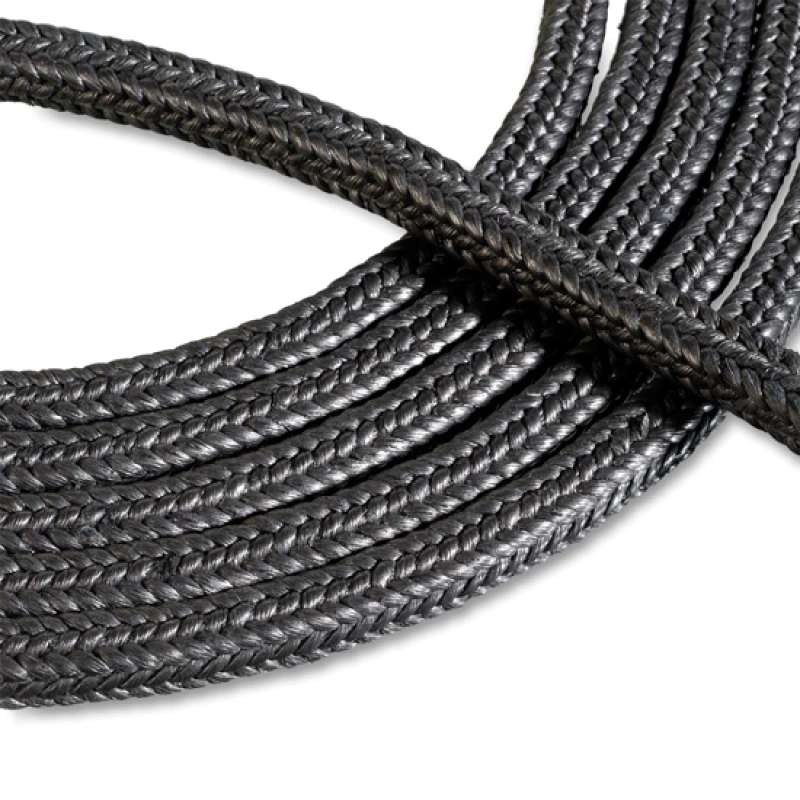

Carbon fiber gland packing | Lattygraf TSP
A diagonally smoothly braided gasket of graphitized carbon fiber threads
Suitable for: a universal flexible braided carbon/graphite fiber gasket for application both in pumps, fluid control equipment and high temperature lid seals
- Very universally applicable.
- Very low friction coefficient.
- Perfectly flexible and elastic properties.
Urgency or questions about availability?
Also available
- different lengths or pre-cut strands
Specifications
| Type | Lattygraph TSP |
| Material | Pure carbon fiber filaments with graphite impregnation |
|
|
|
| *Max. temperature | 550°C |
| *Max. pressure | 300 bar |
| *Max. speed | 35 m/s |
| _Ph range | 0-14 |
|
|
|
|
* Not at the same time
|
|
Contact
For more information about our gland packings , please contact:
