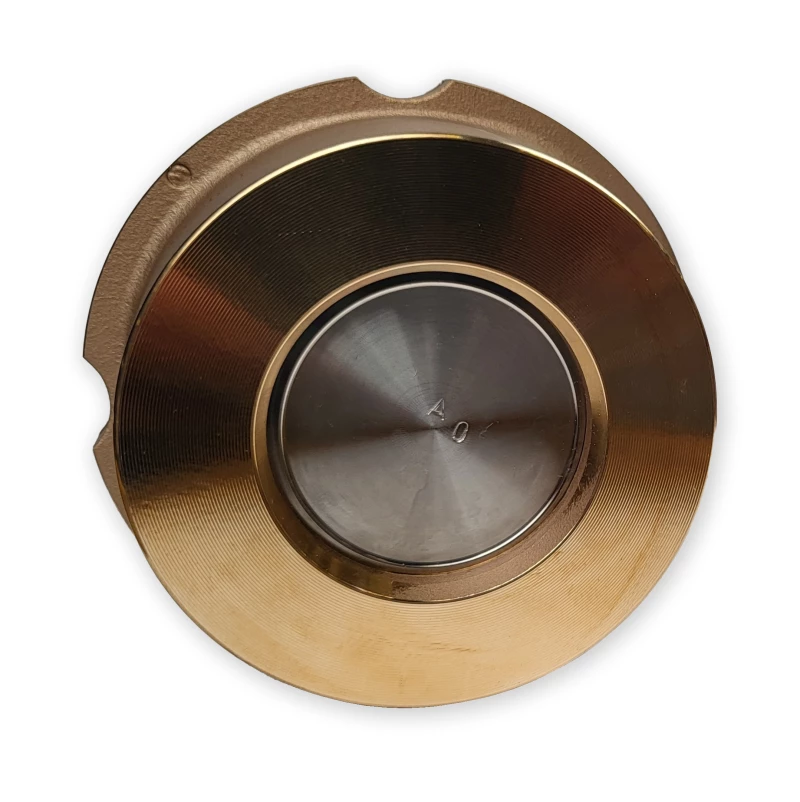

Bronze disc check valve ChemValve CVD - KP-5518

Bronze disc check valve ChemValve CVD | KP-5518

Bronze disc check valve ChemValve CVD | KP-5518
Bronze disc check valve ChemValve CVD | KP-5518
Bronze disc check valve ChemValve CVD | KP-5518
gallery slider left
gallery slider right

For flanges PN 10/40

Suitable for: liquids, gases and steam

  • High quality industrial check valve
  • Long service life due to guidance of the valve in the body with guide ribs
  • Secured spring cover for optimal safety
  • Can be mounted in any position
  • Very low pressure loss
Specifications
Bronze disc check valve ChemValve CVD | KP-5518
Bronze disc check valve ChemValve CVD | KP-5518
Bronze disc check valve ChemValve CVD | KP-5518
Previous series
*PN16
**PN40

Options

  • With PTFE, EPDM, NBR or FPM sealing.

Specifications

Type KP-5518
Material Bronze 2,1050
Pressure class PN10 / PN40 see table
Disc RVS 1.4404
Seat Bronze 2,1050
Spring RVS 1.4401
Spring locking cap RVS 1.4401
Face to face EN558-1 series 49
Temperature min. -200ºC to 300ºC max.
Option spring in Hastelloy up to max 400ºC or Nimonic up to 500ºC
Density according to EN12266-1 rate D for metal / metal sealing and for option with PTFE sealing
Option EPDM, NBR or FPM sealing according to EN12266-1 rate A
Do not apply as an overflow, safety valve or vacuum breaker
