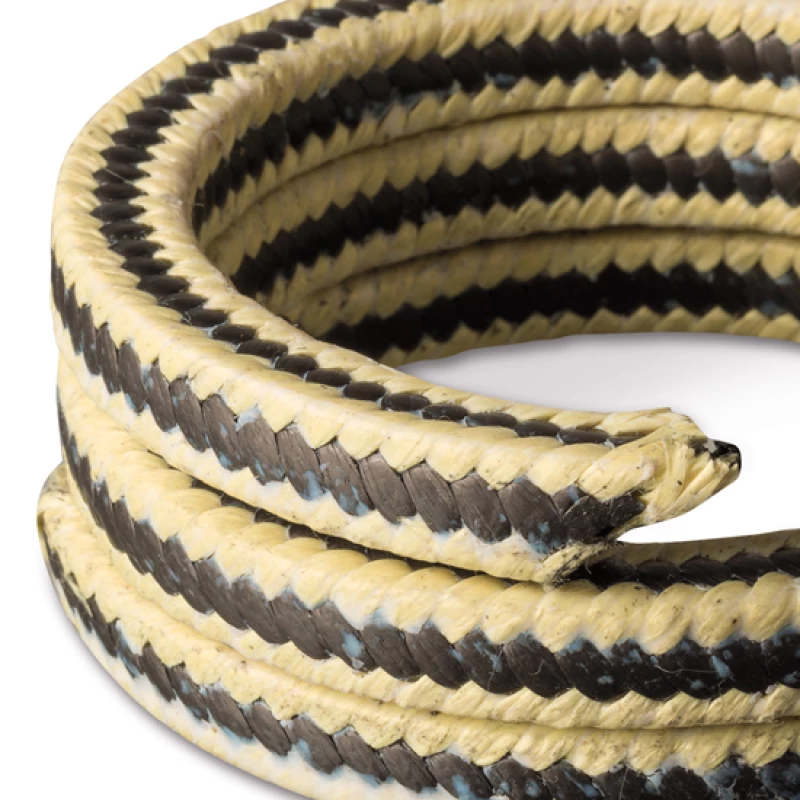

Aramid/PTFE/Carbon gasket | Lattyflon 4757

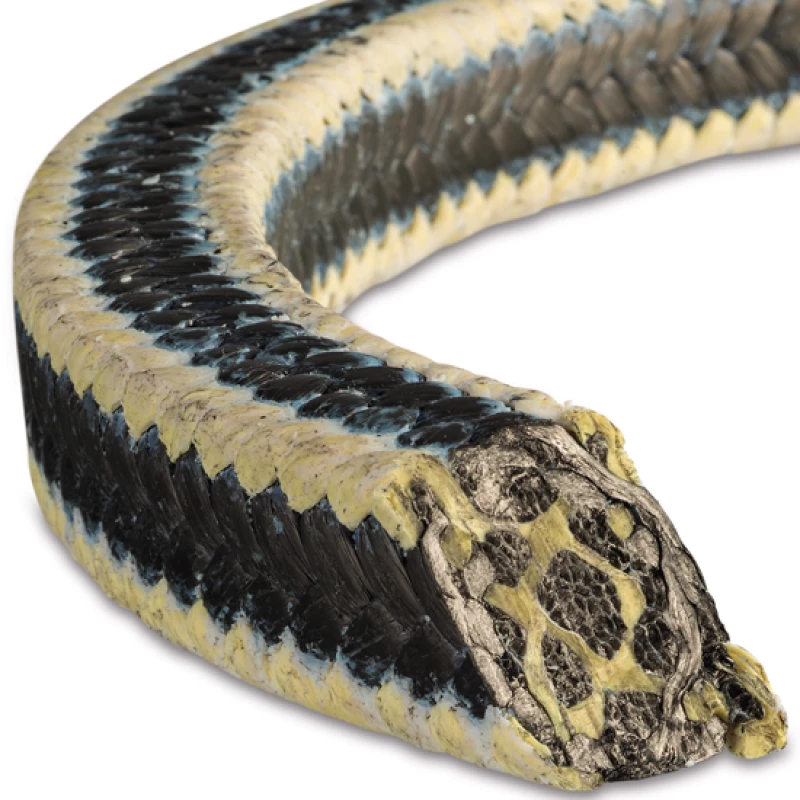

Pure PTFE yarn filled with graphite, the core of carbon yarn, impregnated with PTFE using Filcoat® process, the corners braided from aramid.
Suitable for: plunger and rotary pumps, mixers, reactors with high-pressure slurries, oils and hydrocarbons
- This gasket is strong (aramid), perfectly sealing (ptfe) and yet has good thermal conductivity (graphite). This makes it suitable for high pressures and/or speeds, such as in piston pumps, valves, but also in centrifugal pumps.
Urgency or questions about availability?
Also available
- different lengths or pre-pressed rings
Specifications
| Type | Lattyflon 4757 |
| Material | Aramid yarn combined with PTFE/Graphite |
|
|
|
| *Max. temperature | 300°C |
| *Max. pressure | 1800 bar |
| *Max. speed | 22 m/s |
| _Ph range | 2-14 |
|
|
|
|
* Not at the same time
|
|
