Metal sealing lift plug valves from INNO-CON®

For special and heavy duty applications such as media with hard parts with high pressures and/or high temperatures

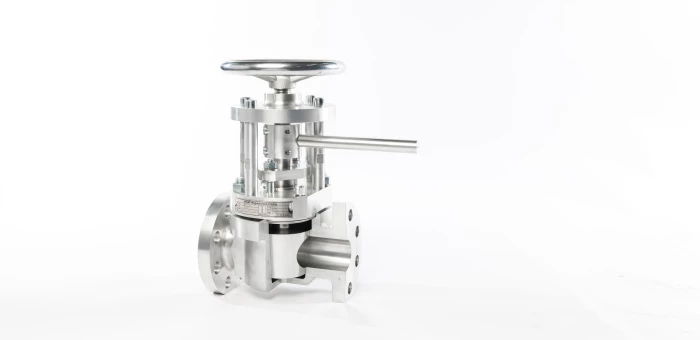

The INNO-CON® is a metal sealing lift plug valve is designed for special and heavy duty applications such as hard part media with high pressures and/or high temperatures.

Because the plug is first lifted before switching, the operating torque required is particularly low. Because of the tapered shape of plug and seat, this valve is independent of medium pressure, bi-directional and sealing on both sides. The bleed/flush connection in the middle makes this a full-fledged double isolate and bleed valve. As the plug goes down, any caked-on medium is pushed away.

Features

90° shut-off valve
Conical metal seat
In the open and closed position, the seats are fully protected from the medium.
Robust and simple design
Leak rate A (bubbletight) seal
'top entry' design (Work on the valve can be done while the valve is installed).
2, 3 or multiport available
100%, 90%, 70% bore bores available.
"Piggable" according to API 6D on request.

Operation

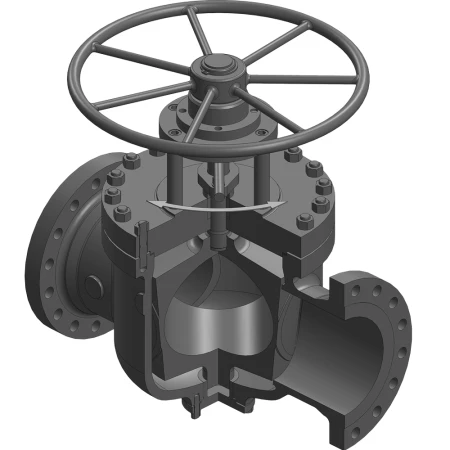

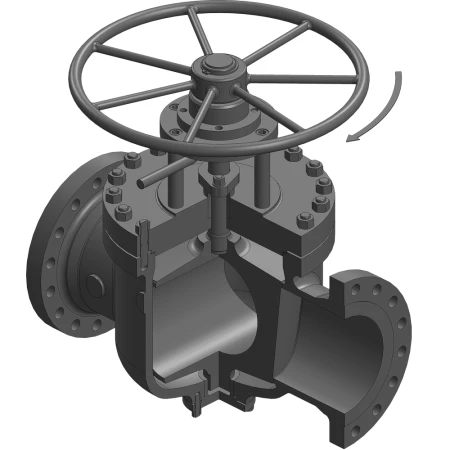

Plug is lifted out of the seat, rotated 90° and then pushed back into the tapered seat.

Hand wheel and lever for manual operation.

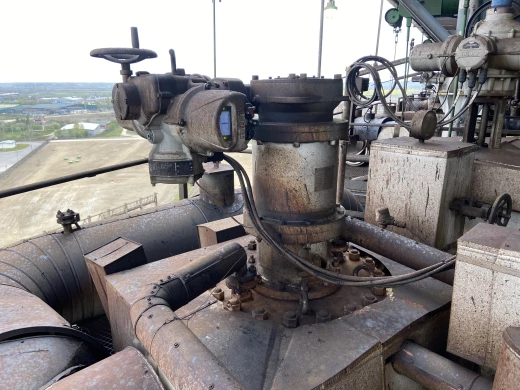

MIAM® specially designed control option: INNO-MAT to be combined with a gearbox or actuator, completely to customer specification.

Applications

Processes with solids or otherwise difficult applications (such as abrasive, crystallizing, curing, solidifying, high viscosity media or suspensions).

Refining/Petrochemical: Coker (delayed or continuous), Ethylene Cracking, FCC (Fluid Catalyst Cracking), Slurry Oil, Tank Farm, Pipeline.
Chemical: MDI, Polymer plants, High temperature applications
Offshore: Oil-sand-water separators
Waste disposal: diaper recycling.
